12141749
MWM/CAT
12141749
TCG2020
0.242
4-6weeks
| Quantity: | |
|---|---|

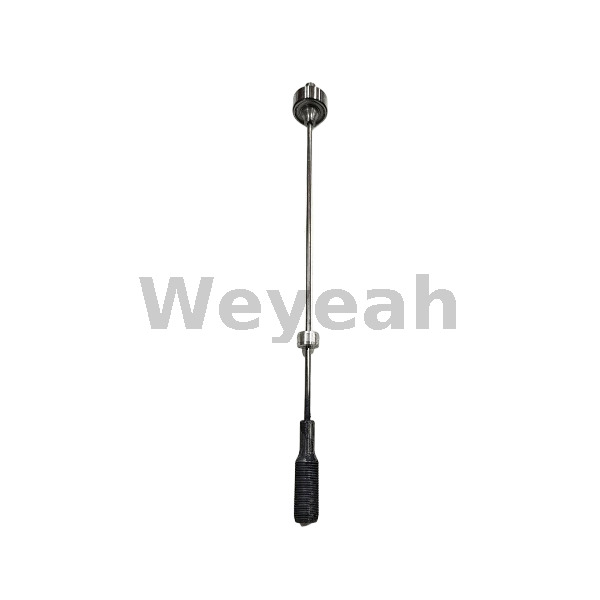

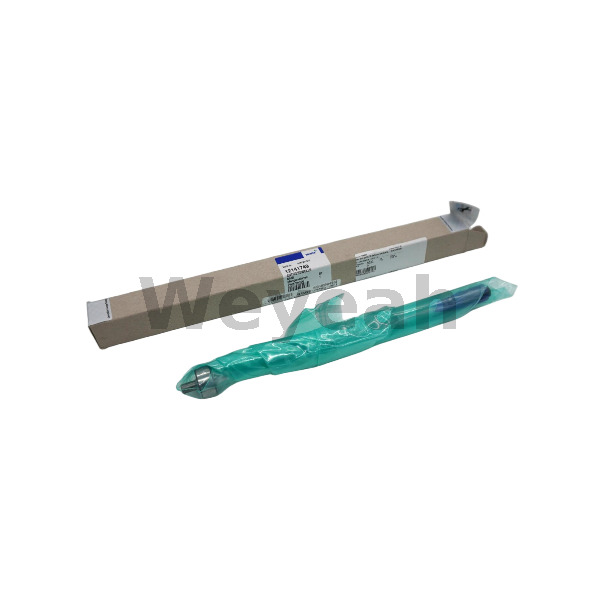

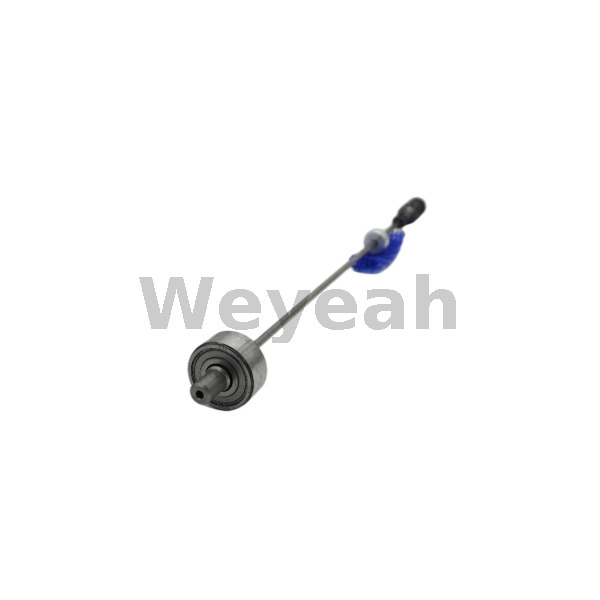

The drive shaft for the MWM TCG2020 gas engine is a pivotal component responsible for transferring rotational power from the engine to driven equipment or systems. Here's a comprehensive description focusing on its key aspects:
Power Transmission:
The primary function of the drive shaft is to transmit rotational energy from the engine's crankshaft to various driven components. This includes generators, compressors, pumps, or any other machinery connected to the engine.
It serves as a critical link in the powertrain system, ensuring efficient delivery of power to perform specific tasks.
Types of Drives:
Direct Connection: In some configurations, the drive shaft connects directly to the driven equipment, such as a generator or compressor.
Through Gearboxes: In other setups, the drive shaft may connect to gearboxes or other transmission components to adjust torque and speed according to the requirements of the driven equipment.
Material Selection:
Drive shafts are typically constructed from high-strength alloy steel or other durable materials capable of withstanding the torsional stresses and loads encountered during operation.
The choice of material ensures longevity, reliability, and resistance to fatigue and deformation under varying operational conditions.
Design Features:
Length and Diameter: The dimensions of the drive shaft are designed based on the power output of the engine and the torque requirements of the driven equipment.
Balancing: Precision machining and balancing of the drive shaft are crucial to minimize vibrations and ensure smooth operation, which is particularly important for high-speed applications.
Couplings and Connection Methods:
Drive shafts employ various coupling methods to connect to the engine's crankshaft and the driven equipment. This may include flange couplings, spline connections, or other types of secure attachments depending on the specific application and torque transmission requirements.
Alignment and Installation:
Proper alignment during installation is essential to prevent misalignment issues that could lead to premature wear and vibration.
Ensuring correct installation torque and securing all connections are critical for safety and optimal performance.
Maintenance:
Regular inspection of the drive shaft is necessary to check for signs of wear, corrosion, or damage.
Lubrication of any bearings or joints in the drive shaft system should be performed as recommended by the manufacturer to maintain smooth operation and extend service life.
In summary, the drive shaft for the MWM TCG2020 gas engine is a robust component designed to efficiently transfer power from the engine to driven equipment. Its material selection, design features, and proper installation are crucial factors in ensuring reliable performance, durability, and safety of the overall engine system. Regular maintenance and adherence to manufacturer guidelines are essential to maximize the lifespan and efficiency of the drive shaft in various industrial and power generation applications.
