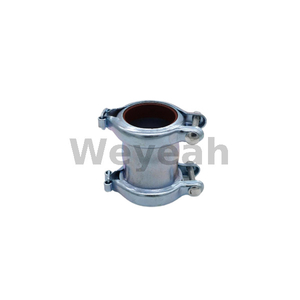

The Pipe Union for the MWM TCG2020 gas engine is a mechanical fitting used to connect two sections of piping or tubing within the engine’s fluid systems. Here’s a detailed description of its functions, design, and maintenance:
Function:
- Connection: The pipe union connects two pipes or tubes, allowing for a secure and leak-proof join. This facilitates the continuation of fluid flow between different sections of the engine’s fluid systems, such as fuel, oil, or coolant lines.
- Disconnection: It enables easy disconnection of pipes for maintenance or replacement without the need to remove the entire assembly. This is particularly useful for routine servicing or repairs.
- Flexibility: Provides flexibility in assembling or disassembling pipe systems, which can be important for engines that require frequent maintenance or have complex fluid routing.
Design and Construction:
Components:
- Body: The main body of the union is typically a cylindrical fitting that houses the internal threads or connections.
- Threads: Includes internal or external threads that allow the union to connect with pipes or other fittings. The threads are designed to match standard pipe sizes and types.
- Seals: May include gaskets, O-rings, or other sealing elements to ensure a leak-proof connection and prevent fluid leakage.
Materials:
- Body: Often made from durable metals such as brass, stainless steel, or aluminum. These materials are chosen for their strength, resistance to corrosion, and ability to withstand engine operating conditions.
- Seals: Made from flexible, high-quality materials like rubber or synthetic polymers, selected to handle the specific fluids and temperatures involved.
Design Features:
- Threading: Features standard threading to ensure compatibility with a wide range of pipes and fittings.
- Sealing Mechanism: Incorporates a sealing mechanism to ensure a tight, leak-proof connection.
- Ease of Use: Designed for easy installation and removal, allowing for straightforward assembly and disassembly of pipe sections.
Operation:
- Fluid Flow: Facilitates the transfer of fluids between connected pipes or tubes. Ensures a smooth and uninterrupted flow of fluids such as fuel, oil, or coolant.
- Connection: The union is screwed onto the ends of two pipes or tubes, forming a secure connection. The sealing elements help to prevent leaks and maintain pressure within the system.
Maintenance and Troubleshooting:
- Inspection: Regularly inspect the pipe union for signs of wear, corrosion, or damage. Check for any leaks around the connection point.
- Cleaning: Keep the union clean and free from debris that could affect its performance. Ensure that the threads and sealing surfaces are in good condition.
- Replacement: Replace the pipe union if it shows signs of damage, leaks, or wear. Ensure that the replacement union matches the specifications of the MWM TCG2020 engine for proper fit and function.
Compatibility:
- Engine-Specific: The pipe union must be designed to fit the specific dimensions and requirements of the MWM TCG2020 gas engine. Proper threading and sealing are essential for effective operation.
Applications:
- Fuel Systems: Connects fuel lines to ensure proper fuel delivery and management.
- Oil Systems: Joins oil pipes to facilitate the transfer of oil throughout the engine.
- Coolant Systems: Connects coolant pipes, helping to maintain effective cooling and prevent overheating.
Summary:
The pipe union for the MWM TCG2020 gas engine is a crucial component that provides a secure and leak-proof connection between sections of piping or tubing. By allowing for easy assembly and disassembly of pipes, it supports efficient fluid management and simplifies maintenance. Regular inspection and maintenance are important to ensure the pipe union remains in good condition and functions effectively, contributing to the overall reliability and performance of the engine.
