WY01177806
Weyeah
01177806
TCG2020
0.048
2-3 weeks
| Quantity: | |
|---|---|

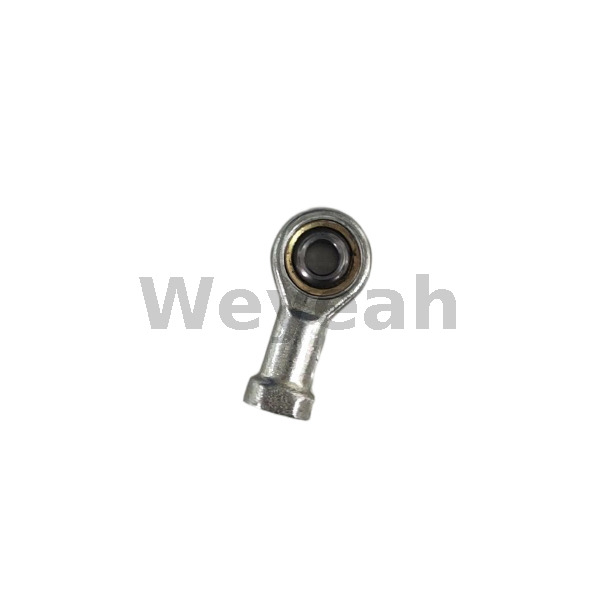

A rod end, also known as a spherical plain bearing or a heim joint, in the context of the MWM TCG2020 gas engine, serves a specific mechanical function within the engine's assembly. Here’s a detailed description of what a rod end is and how it is used:
Linkage Component: A rod end is a mechanical articulating joint that connects a rod or linkage to a mechanical component, allowing angular motion between the connected parts.
Articulation: It provides a means for relative movement between the connected components, accommodating angular misalignment and transmitting forces while maintaining stability.
Typical Applications: In the MWM TCG2020 gas engine, rod ends are commonly used in various applications such as:
Control Linkages: Connecting control rods to engine components like throttle linkages or governor assemblies.
Suspension Systems: Supporting and enabling movement in suspension components, particularly in articulated or pivot points.
Body: Typically made of steel or alloy steel for strength and durability.
Ball: Contains a spherical bearing that allows for rotation and movement in multiple axes.
Housing: Includes a threaded portion or mounting flange for attachment to the rod or component it connects to.
Seals and Lubrication: Some rod ends feature seals or are designed to be greased periodically to ensure smooth operation and longevity.
Mounting: Rod ends are installed by threading them onto a rod or attaching them via a bolt and nut arrangement.
Maintenance: Regular inspection and lubrication (if applicable) are important to maintain smooth articulation and prevent wear. Damaged or worn rod ends should be replaced promptly to avoid mechanical issues.
Precision and Control: Rod ends play a crucial role in ensuring precise control and smooth operation of linkages and mechanical systems within the engine.
Durability: High-quality rod ends contribute to the overall reliability and longevity of the engine by withstanding operational stresses and maintaining effective mechanical connections.
