12141776
MWM
12141776
MWM gas engine
4-6 weeks
| Quantity: | |
|---|---|

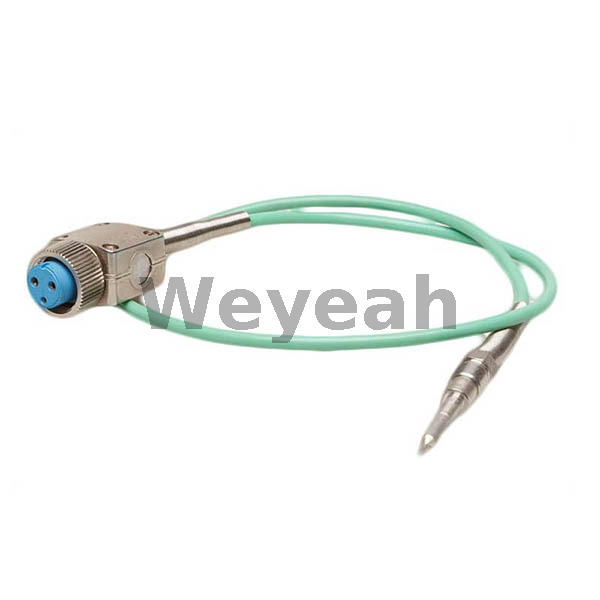

A thermocouple used in MWM gas engines is a crucial sensor that measures and monitors the temperature of various components within the engine. Here's a detailed description of a thermocouple and its application in MWM gas engines:
Function: A thermocouple operates on the principle of the Seebeck effect, where it generates a small voltage proportional to the temperature difference between its two junctions. This voltage is used to determine the temperature at the measuring junction.
Design:
Materials: Thermocouples are typically made from two different metals or metal alloys joined together at one end to form the measuring junction. Common combinations include Type K (chromel-alumel), Type J (iron-constantan), and others depending on the temperature range and application requirements.
Probe Configuration: The measuring junction is often housed in a protective sheath made of stainless steel or other suitable materials to withstand the harsh environment within the engine.
Connector: Thermocouples have a lead wire extending from the measuring junction to a connector, which interfaces with monitoring equipment or control systems.
Types:
Exhaust Gas Thermocouples: Monitor exhaust gas temperatures to optimize fuel-air ratios and ensure efficient combustion.
Cylinder Head Thermocouples: Measure temperatures in the cylinder head to monitor engine performance and prevent overheating.
Coolant and Oil Thermocouples: Monitor temperatures of coolant and engine oil to prevent overheating and ensure proper lubrication.
Application:
Temperature Monitoring: Thermocouples are strategically placed in critical areas of the engine to monitor temperatures continuously. This data helps in optimizing engine performance, preventing overheating, and diagnosing potential issues.
Control Systems: Temperature readings from thermocouples are fed into engine control systems (ECUs) or monitoring equipment to adjust fuel injection timing, air-fuel ratios, and other parameters for optimal performance and emissions control.
Safety: Early detection of abnormal temperatures through thermocouple readings allows for timely intervention to prevent engine damage or failures.
Installation and Maintenance:
Calibration: Thermocouples require periodic calibration to ensure accurate temperature measurements over their operational lifespan.
Protection: Proper installation and protection of thermocouples from mechanical damage and exposure to corrosive gases or fluids are essential for reliable performance.
Advantages:
Durability: Designed to withstand high temperatures and harsh operating conditions typical in MWM gas engines.
Accuracy: Provides accurate temperature readings essential for maintaining engine efficiency and reliability.
Versatility: Available in various configurations and types to suit different temperature measurement requirements within the engine.
In summary, thermocouples are vital components in MWM gas engines, enabling precise temperature monitoring for optimal engine performance, efficiency, and reliability. Their robust design and accurate measurement capabilities contribute significantly to the longevity and operational effectiveness of these industrial engines.
